Drain cleaner for 1-1/4" to 3" lines - Super-Vee
Product Code:- please contact us for pricing

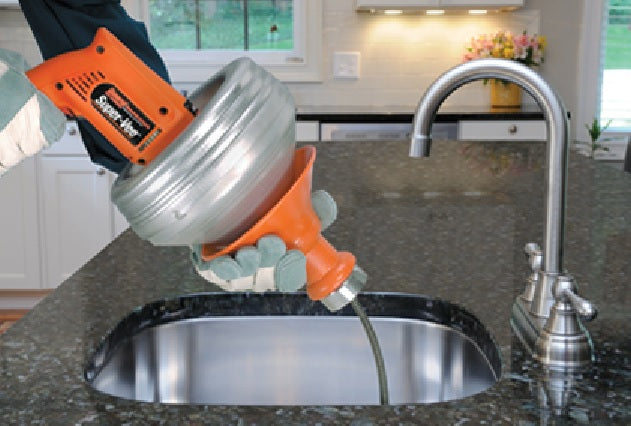

The Super-Vee offers you a complete system for cleaning drain lines through 3” in diameter. With a variety of cables, cutters and accessories available, you have the right combination for any clogged drain problem.
The Super-Vee is built to clear clogged drains for a decade or more. And our Dyna-Thrust™ bearing system is one reason why. It helps carry the weight of the drum, significantly reducing wear on the motor shaft bearing and extending the life of the tool. Of course the cables are Flexicore® – with an integral wire rope center. Nobody makes cables like General.
FEATURES
• For sinks, tubs and laundry drains
• Slide-Action™ chuck built into grip shield.
• Automatically adjusts to different cable diameters.
• Quick-change cartridge makes switching cables clean and easy.
• Unique Dyna-Thrust™ bearing system for longer tool life.
• Holds 50 ft. of 1/4″ or 5/16″, or 35 ft. of 3/8″ Flexicore® cable.
• Flexicore wire rope center cables have unequalled strength yet the
right amount of flexibility.
• Made in U.S.A.
Slide Action Chuck
With a quick movement of the Grip Shield, you release or engage the cable – without the need for a chuck, and with automatic adjustment for different cable diameters. As a result, you get your cable into the line faster, pull it out faster, and have full control at all times. Because the Slide Action Chuck is linked to the Grip Shield, handling is easy and comfortable.
Steps
- Slide Grip Shield FORWARD to release cable.
- Pull Cable out of drum. Slide Grip Shield BACK to grip cable.
- Run cable into line and repeat. It’s that quick!

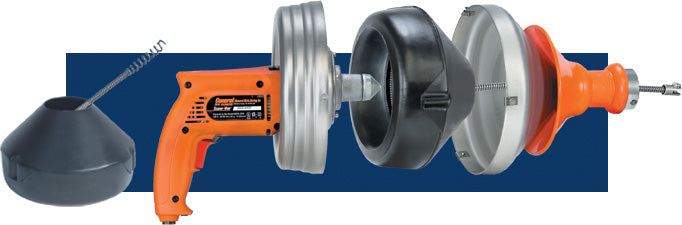

Slide Action Chuck and Cartridge Refill Cables
Cartridge Refill
To switch to a different diameter cable (or even connect two 3/8″ cables together), you just loosen three screws, pull the front of the drum off the cable, and load another cartridge. Changing takes less than a minute and turns what could be a messy job into a clean one. The tough plastic cartridges are so inexpensive, you’ll probably want to store all of your cables in them.
Flexicore® Cable
Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequaled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.
Flexicore® Patent Nos. 2,244,735 and 2,849,870
OPTIONS
Handy-Stand™
The rugged Handy-Stand turns General’s popular and reliable hand-held drain cleaners into practical counter top or floor machines. Ergonomically balanced for maximum stability, the lightweight portable Handy-Stand fits the Super-Vee®, Power-Vee®, and Handylectric®, All three models are ideal for unclogging sinks, tubs, and laundry drains.
The convenient Handy-Stand makes it easier for you to carry your hand-held machine to and from the job site. The lift handle doubles as a spare cartridge holder and protects your machine from damage. On the job, the Handy-Stand can be positioned either horizontally or vertically for maximum flexibility.
DHF
All-purpose Down Head Fitting can be used with all standard HECS cutters.
CAA
Closet Auger Attachment Guides 1/4″ or 5/16″ cable into bowl.
MCC
Carrying Case For Super-Vee, Power-Vee and Handylectric.
Snake-Oil Classic™
A great way to extend the life of drain cleaning tools & equipment
Snake-Oil Classic™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.
ClogChopper®
Rip through tough stoppages with the unique ClogChopper® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.
The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.
CUTTER SET
AH Arrow Head Starting Drill - Starting Drill (Gets water flowing)
BG Boring Gimlet - For removing loose objects
DHBG Down Head Boring Drill - For removing loose objects (Goes down waste, not up stack)
FAH Flexible Spring Arrow Head Cutter Starting Drill - (For sharp turns and small lines)
1-1/4 SCB 1-1/4" Side Cutter Blade (2-piece set) - For cutting and scraping
SUPER-VEE UNITS FOR THE RENTAL INDUSTRY - COMPLETE AND READY TO OPERATE
Item # | Catalog # | Description | Weight |
LB | |||
100170 | R-SV-A | Super-Vee with 25HE1 (25 ft. x 1/4″), 25HE2 (25 ft. x 3/8″) cables, HECS cutter set, cartridges and Instructional DVD. | 20 |
100180 | R-SV-A-WC | Super-Vee with carrying case, 25HE1 (25 ft. x 1/4″), 25HE2 (25 ft. x 3/8″) cables, HECS cutter set, cartridges and Instructional DVD. | 31 |
100230 | R-SV-D | Super-Vee with 25HE1-A (25 ft. x 5/16″) cable and Instructional DVD. | 14 |
100240 | R-SV-D-WC | Super-Vee with carrying case and 25HE1-A (25 ft. x 5/16″) cable and Instructional DVD. | 25 |
CUTTER SET
Item # | Catalog # | Description | Weight |
130010 | HECS | Hanylectric Cutter Set (Includes Arrow head, Flexible Arrow Head, 1-1/4″ Side Cutter Blade, Boring Gimlet, & Down Head Boring Gimlet) | 0.5 LB |
REPLACEMENT CABLES
Item # | Catalog # | Description | Weight | |
---|---|---|---|---|
120010 | 25HE1 |
Flexicore Cable, 1/4″ x 25 ft. with EL Basin Head |
4 lbs |
|
120020 | 50HE1 |
Flexicore Cable, 1/4″ x 50 ft. with EL Basin Head |
8 lbs |
|
120030 | 25HE1-DH |
Flexicore Cable, 1/4″ x 25 ft. with Down Head |
5 lbs |
|
120040 | 50HE1-DH |
Flexicore Cable, 1/4″ x 50 ft. with Down Head |
9 lbs |
|
120070 | 25HE1-A |
Flexicore Cable, 5/16″ x 25 ft. with EL Basin Head |
6 lbs |
|
120080 | 50HE1-A |
Flexicore Cable, 5/16″ x 50 ft. with EL Basin Head |
12 lbs |
|
120090 | 25HE1-A-DH |
Flexicore Cable, 5/16″ x 25 ft. with Down Head |
6 lbs |
|
120100 | 50HE1-A-DH |
Flexicore Cable, 5/16″ x 50 ft. with Down Head |
12 lbs |
|
120110 | 25HE1-AC |
Flexicore Cable, 5/16″ x 25 ft. with Female Connector |
6 lbs |
|
120130 | 50HE1-AC |
Flexicore Cable, 5/16″ x 50 ft. with Female Connector |
12 lbs |
|
120160 | 25HE2 |
Flexicore Cable, 3/8″ x 25 ft. with Female Connector |
7 lbs |
|
120170 | 35HE2 |
Flexicore Cable, 3/8″ x 35 ft. with Female Connector |
10 lbs |
|
PARTS & ACCESSORIES
Item # | Catalog # | Description | Weight | |
---|---|---|---|---|
133010 | MCC |
Carrying Case |
9 lbs |
|
133030 | HST |
Handy-Stand |
6 lbs |
|
141300 | SV-25 |
Cable Grippers |
– |
|
136090 | SV-31-3 |
Trigger Switch for Skil #6355-GWS |
– |
|
136100 | SV-31-V-S |
Trigger Switch for Skil #81596 |
– |
|
128800 | 1CG |
1” ClogChopper |
1 lb |
|
128810 | 1-1/2CG |
1-1/2” ClogChopper |
1 lb |
|
128820 | 2CG |
2” ClogChopper |
1 lb |
|
440120 | SOQ |
1 Quart Snake-Oil Classic |
2 lbs |
|
440150 | SOG |
1 Gallon Snake-Oil Classic |
7.5 lbs |
|
SPECIFICATIONS
Motor: All ball-bearing, double-insulated, reversible motor with variable speed control;
0 – 500 rpm.
Drum: Heavy gauge stamped aluminum with inner drum to prevent cable tangling.
Capacity: 50 ft. of 1/4″ or 5/16″ cable; 35 ft. of 3/8″ cable.
All cables are left hand wound and reinforced with a wire rope center.
Cutter Set: Arrow Head, Boring Gimlet, Down Head Boring Gimlet, 1-1/4″ Side Cutter Blade, Flexible Arrow Head
Cable Cartridges: Light weight, impact resistant plastic.
Slide Action Chuck: Grip shield moves back to engage cable, forward to release it.
Automatically adjusts for different diameter cables.
