Drain inspection system for 2"-4" lines,Gen-Eye SD card reader
Product Code:- please contact us for pricing

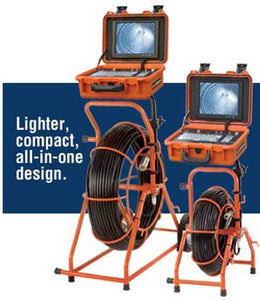

The upgraded Gen-Eye SD® Series pipe inspection camera gives you all the features of a full size video inspection system in a compact, portable package.The integral SD Card Reader records video or still images – it can store as much as 32 GB of data on one card. Keep a copy for your records and make copies for your customers.
In addition to the card reader, the Gen-Eye SD Command Module includes a large 10.4” LCD color monitor for crisp, clear pictures. And the full-size, waterproof keyboard permits nine pages of on-screen titling.
It also sports an on-screen distance counter, built-in voice-over microphone with switch, LED dimmer control, camera test port, and video and audio out connections for external recording devices.
All are safely contained in a heavy-duty, padded Pelican case weighing just 12 lbs. The fully adjustable docking arm lets you mount the monitor on a big capacity reel loaded with Gel-Rod® push-rod and a color self-leveling camera.
With this easily maneuverable, all-in-one package you’re all set to trouble-shoot 3” to 10” lines with the standard reel, or inspect 2” to 4” lines with the mini-reel.
Gen-Eye SDN Command Module:
- 10.4” LCD color screen for crisp clear pictures
- SD card reader to store video or still images
- Waterproof keyboard permits on-screen titling
- Internal microphone and speaker for voice over recording
- On-screen date and time indicators
- On-screen distance counter
- LED Dimmer control
- Heavy-duty Pelican case
- Camera test port
- Includes AC and DC power cords, and 8 GB flash drive
Gen-Eye SDW Command Module:
Same as SDN Command Module, plus:
- Wi-Fi transmitter to record video on smartphone or tablet
Gen-Eye SDP Command Module:
Same as SDN Command Module, plus:
- Wi-Fi transmitter to record video on smartphone or tablet
- Sunlight readable screen
- Rechargeable battery that lasts up to 4 hours
Flexibility, Strength, Durability
A tough, Gel-Rod® push rod protects against moisture damage if the rod is cut or abraded. Its Kevlar® braid, fiberglass core, and durable sheath provide for maximum pushing and pulling power.
Big Capacity Reels
The standard reel holds 200 ft., 300 ft., or 400 ft. of push rod on a sturdy frame and takes up little space in your truck. Ten inch wheels ensure easy transport to and from the job. The mini reel carries 100 ft. or 200 ft. of push rod in a compact frame for easy handling without taking up too much room in your truck.
Advanced Skid designs
Skids keep the camera centered in the pipe for a better view, while reducing drag on longer runs. Standard systems include both 2″, 3″ and 6″ trap skids that protect the camera from abrasion as it slides through cast iron traps. Optional 3-in-1 skid set for 4″, 6″ and 8″ lines, and Universal Roller Skid for 6″ to 12″ lines are also available.
FEATURES
-
Large 10.4″ Screen
The larger 10.4” LCD monitor gives you crisp, clear images to make it easier to see the picture while doing inspections.
-
Sunlight Readable Screen (Available with Gen-Eye SDP)
Larger 10.4” LCD transflective screen makes is easier to see the monitor while doing inspections outdoors in bright sunlight.
-
Waterproof Keyboard
You get up to nine pages of text to add your company name and job location to each video you make.
-
Integral SD Recorder
Record video or still images. Stores as much as 32 GB of data on one card.
-
Wi-Fi Transmitter (Available with Gen-Eye SDW and SDP)
Sends video to your Smartphone or tablet. A free App lets you easily view and record video inspections at a range of up to 300 feet.
-
Rechargeable Battery (Available with Gen-Eye SDP)
For remote applications far from a power source. Battery last for up to 4 hours. Panel indicator lets you know when the battery is running low.
-
Heavy-Duty Pelican Case
Protects LCD screen, electronics, and your investment.
- Self-Leveling Camera
Automatically keeps picture right side up as the camera glides through the line. Just 1.625” in diameter with 16 Bright-White LED’s to illuminate up to 10” lines.
-
Built-in AC/DC converter
Allows you to operate in the field with truck power alone.
-
Built-in voice over recording
Internal microphone and on/off switch lets you add commentary to your videos.
-
On-screen distance counter
Lets you keep track of how much push-rod you’ve fed into the line. Switchable between standard and mini reels.
-
Date and Time Stamp
You can document the date and time of each job for your records.
-
Other features include
Internal 512 Hz transmitter, dimmer control, camera test port, 2″, 3” and 6” trap skids, and storage compartment for power cords, tools, and remote controls.
GEN-EYE SDN MINI CAMERA – FOR 2” TO 4” LINES – WITH MINI SELF-LEVELING CAMERA
Item # |
Catalog # | Description | LB |
179310 | SL-M-SDN-A | Includes SDN-500 Command Module, SL-M-GL-100 mini reel with Mini Self-Leveling Color Camera, Docking Arm and 2 & 3″ skids. | 93 |
179320 | SL-M-SDN-B | Same as SL-M-USB-A, plus GL-100 Hot-Spot Locator | 98 |
179340 | SL-M-SDN-C | Includes SDN-500 Command Module, SL-M-GL-200 mini reel with Mini Self-Leveling Color Camera, Docking Arm and 2 & 3″ skids. | 102 |
117520 | SL-M-USB-D | Same as SL-USB-C, plus GL-100 Hot-Spot Locator | 107 |
GEN-EYE SDW MINI CAMERA – FOR 2” TO 4” LINES – WITH MINI SELF-LEVELING CAMERA
Item # | Catalog # | Description | LB |
179350 | SL-M-SDW-A | Includes SDW-500 Command Module with Wi-Fi, SL-M-GL-100 mini reel with Mini Self-Leveling Color Camera, Docking Arm and 2 & 3″ skids. | 93 |
179360 | SL-M-SDW-B | Same as SL-M-SDW-A, plus GL-100 Hot-Spot Locator | – |
179370 | SL-M-SDW-C | Includes SDW-500 Command Module, SL-M-GL-200 mini reel with Mini Self-Leveling Color Camera, Docking Arm and 2 & 3″ skids. | 102 |
179380 | SL-M-SDW-D | Same as SL-M-SDW-C, plus GL-100 Hot-Spot Locator | 107 |
GEN-EYE SDW MINI CAMERA – FOR 2” TO 4” LINES – WITH MINI SELF-LEVELING CAMERA
Item # | Catalog # | Description | LB |
179390 | SL-M-SDP-A | Includes SDP-500 Command Module with Wi-Fi, Sunlight Readable Screen, 4 hr battery, SL-M-GL-100 mini reel with Mini Self-Leveling Color Camera, Docking Arm and 2 & 3″ skids. | 93 |
179400 | SL-M-SDP-B | Same as SL-M-SDP-A, plus GL-100 Hot-Spot Locator | 98 |
179410 | SL-M-SDP-C | Includes SDP-500 Command Module, SL-M-GL-200 mini reel with Mini Self-Leveling Color Camera, Docking Arm and 2 & 3″ skids. | 102 |
179420 | SL-M-SDP-D | Same as SL-M-SDP-C, plus GL-100 Hot-Spot Locator | 107 |
