Drain Cleaner for 3" to 10" lines - Model 88
Product Code:- please contact us for pricing
The Model 88 is almost as easy to run as a lawnmower. You push eight- or ten-foot cable sections into the line until you reach some resistance. Then attach the rear cable coupling to the machine, stand behind it, and turn it on. Watch the cable feed itself into the line. When a section has run into the drain, attach another one and keep going. This self-feeding feature also works to pull sections out of the line.
The Model 88 handles jobs up to 200 ft. long in lines from 3″ to 10″ diameter. A standard 3/4 hp capacitor motor supplies plenty of power, and an adjustable safety clutch protects cables and operator.
Sections come in two styles: all-purpose Flexichain, which has a chain center, and the stiffer Proflex, which has a spring center. A chain assures easier cable retrieving if the Flexichain spring should break. The inner spring in the Proflex gives it greater stiffness, which is desirable for long or tough jobs. The outer spring is right-hand wound for faster self-feeding. Comes with RDCS-G cutter set.
Made in USA by General Wire
Couplings are shown below. Both types snap together in a second and are taken apart quickly with a spanner wrench or screwdriver. With the newer “G” connector, no tension is on the locking pin when running in reverse, making it a more durable coupling.
Snap on the optional 78L-CDC adapter and you can use 6 ft. x 7/8″ cables (6L78) to clear smaller lines.
FEATURES
- As easy to use as a lawn mower.
- Self-feeds 8 and 10 ft. cable sections as far as 200 ft. into the line.
- Cables snap together in seconds.
- Lighter weight and more compact than cage type machines.
- Easily fits into trunk of a car.
- Adjustable safety clutch protects cables and operator.
- 3/4 hp motor drives 3.5 to 1 gear reducer.
- Pneumatic foot switch and ground fault interrupter.
- Folding handle and 10″ wheels.
- Made in U.S.A.
Automatic Safety Clutch
Protects cable and operator in case the cable should get caught in the line. Factory set at 100 inch pounds but can be adjusted easily for very heavy jobs or longer runs.
Folding Handle
Gives Model 88 a low profile for more convenient storage and transport. Lift handle and locking collars slide into place for secure operation. Handle on front frame and rear cross bar make lifting and loading into car trunk easier.
Pneumatic Power Switch
Air-actuated for safety. There is not electrical connection between switch and motor. Switch can be removed from handle and used as a foot pedal when working with the cable feeding tube.
Cable Feeding Tool
It enables cable to get around tight bends and traps by taking advantage of open-wound design of cables. Note that operator controls machine by using power switch in foot pedal mode.
OPTIONS
Cables
Sectional cables for the Model 88 snap together in a second and are taken apart quickly with a coupling wrench. The open coils screw into the line making it easier to clear long lines with less effort. They are available in a variety of lengths and connectors for General and competitive brands. With the more recently developed “G” connector, no torque is put on the locking pin when running the machine in reverse, making it a more durable coupling.

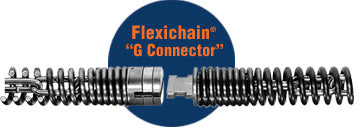

Flexichain™ Sections
Quick-coupling 1-1/4” Flexichain sectional cables can be used with General’s Model 88™ or Rodrunner®. The heavy-gauge open wound outer coil is right-hand wound for faster self-feeding into the line. A chain center gives maximum protection against losing broken cables in a line, while allowing maximum flexibility. They are available in 10 ft. lengths. (Shown with “G” Connector)

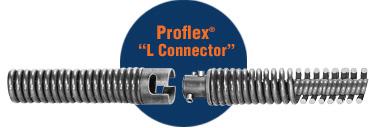

Proflex™ Sections
Proflex cables have the same 1-1/4” outer cable as the Flexichain cables, for use with the same machines. An inner spring enables the cable to better handle motor torque and has better “push” when working though tough stoppages. They are available in 8 or 10 ft. lengths. (Shown with “L” Connector)
To clear smaller lines, a 6 ft. by 7/8” Proflex cable with “L” connectors (Cat # 6L78) is also available. The 7/8” L-Cable Drive Couple (Cat # 78L-CDC) is required to use it.
Snake-Oil Classic™
A great way to extend the life of drain cleaning tools & equipment
Snake-Oil Classic™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.
ClogChopper®
Rip through tough stoppages with the unique ClogChopper® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.
The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.
General offers a variety of sizes, and connector options, including sectional G connectors, as well as other brands of machines, cables, and attachments.

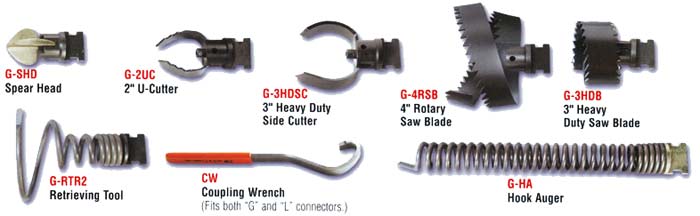

CUTTER SET (CATALOG #RDCS-L)
G-SHD/L-SHD (G Connector/L Connector)
Spear Head for Starting Drill (Gets water flowing)
G-HA/L-HA
For removing loose objects and broken cables
G-2UC/L-2UC For cutting and scraping

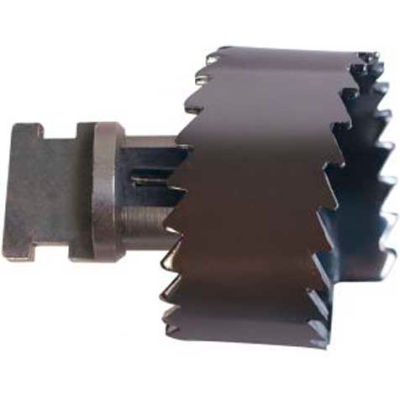

G-3HDB/L-3HDB For roots and other stoppages

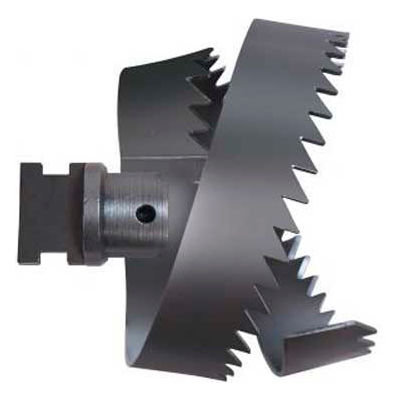

G-4RSB/L-4RSB For cutting and scraping
G-RTR-2/L-RTR-2 For removing loose objects and broken cables
G-CW/L-CW Coupling Wrench To disconnect cables and cutters
MODEL 88 UNITS - COMPLETE AND READY TO OPERATE
Item # | Catalog # | Description | Weight | |
---|---|---|---|---|
112420 | R-88-G |
Model 88 with “G” Connector, no cables or cutters |
100 lbs |
|
112520 | R-88-L |
Model 88 with “L” Connector, no cables or cutters |
100 lbs |
|
112425 | R-88-GP |
Model 88, plus ten 10GP Proflex sections with “G” connectors, and RDCS-G cutter set. |
268 lbs |
|
112540 | R-88-8LP |
Model 88, plus thirteen 8LP Proflex sections (104 ft.) with “L” connectors, and RDCS-L cutter set. |
277 lbs |
|
CUTTER SET
Item # | Catalog # | Description | Weight | |
---|---|---|---|---|
160040 | RDCS-G |
Rodrunner Cutter Set with “G” Connectors (Includes G-SHD, G-HA, G-2UC, G-3HDSC, G-3HDB, G-4RSB, G-RTR-2, G-CW) |
8 lbs |
|
161040 | RDCS-L |
Rodrunner Cutter Set with “L” Connectors (Includes L-SHD, L-HA, L-2UC, L-3HDSC, L-3HDB, L-4RSB, L-RTR-2, L-CW) |
8 lbs |
|
REPLACEMENT CABLES
Item # | Catalog # | Description | Weight | |
---|---|---|---|---|
160010 | 10GF |
1-1/4″ x 10′ Flexichain with “G” Connectors |
14 lbs |
|
160030 | 10GP |
1-1/4″ x 10′ Proflex with “G” Connectors |
16 lbs |
|
161010 | 10LF |
1-1/4″ x 10′ Flexichain with “L” Connectors |
14 lbs |
|
161030 | 10LP |
1-1/4″ x 10′ Proflex with “L” Connectors |
16 lbs |
|
161000 | 8LF |
1-1/4″ x 8′ Flexichain with “L” Connectors |
10.5 lbs |
|
161020 | 8LP |
1-1/4″ x 8′ Proflex with “L” Connectors |
13 lbs |
|
SPECIFICATIONS
Weight: 80 lbs. (36 kg) without cables.
Dimensions: 21″ wide x 16″ high with handle folded down. (53 cm x 41 cm)
Motor: 3/4 hp with capacitor and 20 ft. power cord with Ground Fault Circuit Interrupter; rotates 1-1/4″
diameter cables at 500 rpm.
Gear Head: Rugged cast iron body, ball bearings, cut gears.
Wheels: 10″ rubber rear wheels, 6″ solid rubber caster wheel.
Combination Hand or Foot Operated Power Switch: Air activated for safety; no electrical connection between motor and switch; can be used as hand or foot switch. Eleven foot air hose.
Power Switch: Has an “off” position to de-activate the control switch.
Adjustable Safety Clutch: Factory set at 18-20 ft. lbs. Protected by a tamper- resistant snap-on cover.
Folding Handle: Reduces truck storage space. Flips down in a second but is completely secure in operating position.
Cutter Set with “G” Connectors: Spear Head, Hook Auger, 2″ U-Cutter, 3″ Heavy Duty Side Cutter, 3″ Heavy Duty Saw Blade, 4″ Rotary Saw Blade, Large Retrieving Tool, Coupling Wrench.
Cutter Set with “L” Connectors: Spear Head, Hook Auger, 2″ U-Cutter, 3″ Heavy Duty Side Cutter, 3″ Heavy Duty Saw Blade, 4″ Rotary Saw Blade, Large Retrieving Tool, Coupling Wrench.
Sectional Cables: Four, Eight and ten foot “Cable Saver” sections come in all purpose Flexichain® which has a chain center, and a stiffer Proflex® which has a spring center. Proflex is also available in a heavier duty 5/8” spring center. Available with ‘G’ or ‘L’ connectors
