Drain cleaner Auto-Feed for 3" to 10" lines Speedrooter 92RProduct Code:

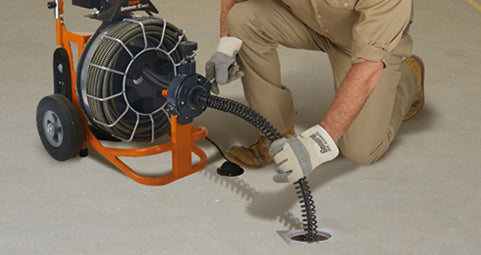

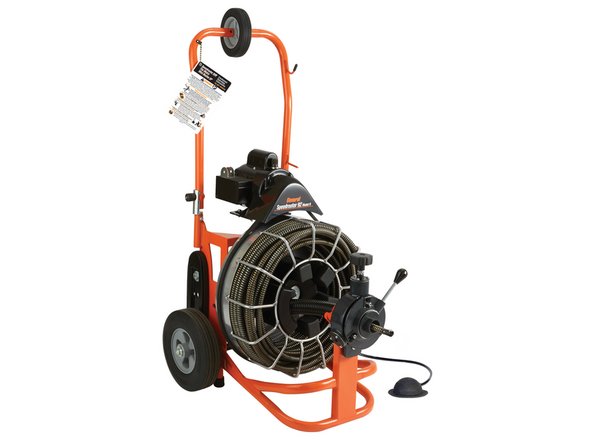

The Speedrooter 92R with power cable feed and the SRCS-R cutter set makes the job of drain cleaning easier, faster and cleaner for your customers. Instead of wrestling with a manual snake in and out of the line, the power cable feed drives the cable into the line at up to 20 feet per minute. Put the feed in reverse and it retracts the cable easily too. Some cables weigh up to 100 lbs. so this is a real labor savor.
The power cable feed and guide tube combination allows the cable to feed smoothly into the line while keeping your customer’s hands clean and away from the spinning cable.
The Speedrooter is job tested tough. From its frame braced at key stress points, to General’s exclusive Flexicore® wire rope center cable that’s so tough it carries a one year warranty, the Speedrooter can really take a beating.
- Clears tree roots and tough stoppages in 3″ to 10″ drains.
- Open cage holds 100 ft. of 3/4″ or 5/8″ Flexicore®
- Open cage lets you see cable condition after each rental.
- Variable speed Power Cable Feed easily drives and retrieves cable at up to 20 ft/min.
- Guide tube reduces cable drag and keeps hands off of rotating cable.
- Features stair climbers, 10″ heavy-duty ball bearing wheels, truck loading wheel, and tool box.
- 1/3 hp motor with momentary contact reverse switch.
- Adjustable height handle can be 3″ taller or more compact.
- Made in U.S.A.
One person easily loads the Speedrooter 92 onto a truck. The swept-back handle and loading wheel give you the needed leverage.
Portability, Convenience and Safety
Equipped with 10″ heavy-duty wheels, stair climbers, tool box and ground fault circuit interpreter.
V-belt Stair Climbers
V-belt stair climbers like the ones used to move heavy furniture and appliances let you take the Speedrooter 92R up a flight of stairs yourself.
Greatly increases the efficiency of power cable feed by reducing cable whipping and drag. Keeps your hands off of the spinning cable. Tube is 30” long. Five foot extensions are made of rigid conduit with a flexible spring end.
A momentary contact reverse switch protects the cable by preventing the operator from running the machine in reverse for more than a few seconds at a time.
Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.
Flexicore® Patent Nos.
2,244,735 and 2,849,870
A great way to extend the life of drain cleaning tools & equipment
Snake-Oil Classic™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.
General Pipe Cleaners’ Quick-Fix™ let’s you quickly repair broken drain snakes in the field. The unique Quick-Fix let’s you continue working and finish the job without having to go back to your shop to repair or replace a broken cable. The Quick-Fix is available in 1/2”, 9/16”, 5/8”, and 3/4” sizes with female or male connectors.
The specially designed spring with a pre-welded female connecter is easy to attach in the field. Prepare your broken snake by cutting off the damaged or kinked end of the cable with bolt cutters or a hack saw. Then simply thread the Quick-Fix over the broken snake. No welder is required! All you need are vice-grips or a pair of pliers. Once it’s on, the Quick-Fix holds on so tightly that it simply cannot be removed, even if you wanted to.
Rip through tough stoppages with the unique ClogChopper® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.
The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.
SHD Spear Head Starting Drill (Gets water flowing)
2UC 2" U-Cutter For cutting and scraping
3HDSC 3" Heavy Duty Side Cutter For cutting and scraping
3HDB 3" Heavy Duty Saw Blade For roots and other stoppages
RTR-2 Large Retrieving Tool For removing loose objects and broken cables
PARTS & ACCESSORIES
Weight: 115 lbs. (52 kg) without cable
Dimensions: 26” deep, 22” wide, 41” high (66 cm x 56 cm 104 cm)
Drum: Drum holds 100 ft x 3/4” or 5/8” cable (30 m x 19 mm or 17 mm).
Drum Removal: Loosen two knobs, remove ringbolt, and lift off.
Motor: 1/3 hp heavy duty, capacitor start, thermal overload protection, Forward/Off/Momentary Contact Reverse Switch.
Foot Switch: Pneumatic, with no electrical contact between pedal and motor.
Power Cable Feed: Drives and retracts at variable speeds of up to 20 ft. per minute.
Cable Guide Tube: Keeps operators hands clean and off spinning cable. 5 ft. extensions available.
Wheels: 10” Heavy-duty wheels with roller bearings.
Stair Climbers: Heavy-duty V-belts running on nylon rollers.
Passive Wheel Brake: Keeps machine in place on the job or in the truck.
Folding Handle: Tall enough to make it easy to move to the job, yet quickly folds to take less room in vehicle.
Truck Loading Wheel: Enables one person to lift machine onto bed of truck.
Tool Box: Attached to rear of machine. Holds all cutters.
Leather Gloves: With double-reinforced palm for hand protection when guiding cable.
Cables: Left wound Flexicore® wire rope center 3/4” diameter for 4” to 10” lines and 3” lines without sharp bends; 5/8” diameter for 3” to 6” lines.
SRCS-R Cutter Set for 5/8” and 3/4” cables
SHD Spear Head
2UC 2” U-Cutter
3HDSC 3” Heavy Duty Side Cutter
3HDB 3” Heavy Duty Saw Blade
RTR-2 Large Retrieving Tool
Instructional Video included.
