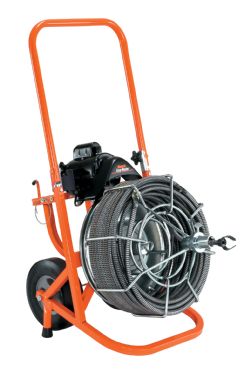

Drain cleaner for 3" to 10" lines - Easy Rooter
Product Code:- $3,33000 $3,330.00
The Easy Rooter is a tough, easy-to-use machine. It has a rugged powder coated steel frame with special “roll bars” to protect the motor and heavy-duty roller bearings in the cage for longer life and greater motor efficiency on long runs. The large cage holds 100 feet of 3/4″ or 5/8″ Flexicore® cable to clear tree roots and other difficult obstructions in 3” to 10” drain lines. Comes with Flexicore cable and SRCS-R cutter set.
A Quick-Grip™ chuck secures the cable during operation. With a just a quarter turn, the chuck tightens firmly on the cable to secure it while the Easy Rooter drives the cable into the line. Then, can be released just as quickly to pull more cable from the drum. It’s faster and easier to use than a thumb screw.
The Easy Rooter rolls smoothly on big 10″ ball bearing wheels mounted on a half inch reinforced axle. A built-in brake holds the machine securely on the job or in a customer’s car during transport. An extra-long folding handle quickly locks in place, making it much easier to wheel the Easy Rooter to the job, without sacrificing the compact size needed for easy loading in a car trunk.
Power is supplied by a 1/3 hp capacitor motor with thermal overload protection. A momentary contact reverse switch protects the cable by preventing the operator from running the machine in reverse for more than a few seconds at a time.
Standard safety features include an air actuated foot pedal, ground fault circuit interrupter, safety slip clutch, and instructional video in English, French, and Spanish.
FEATURES
- Clear tree roots and other difficult obstructions in 3” to 10” drain lines.
- Cage holds 100 feet of 3/4″ or 5/8″ Flexicore cable.
- Quick-Grip™ chuck secures the cable during operation.
- Rugged powder coated steel frame.
- Special “roll bars” to protect the motor.
- Extra-long folding handle quickly locks in place.
- Rolls smoothly on big 10″ ball bearing wheels.
- 1/3 hp capacitor motor with thermal overload protection.
- Momentary contact reverse switch to protect the cable.
- Safety features include: Air actuated foot pedal, ground fault circuit interrupter, safety slip clutch, and momentary contact reverse switch.
Folding Handle
Handle folds down for more compact storage and to take less space in car trunk.
Contact Reverse Switch
A momentary contact reverse switch protects the cable by preventing the operator from running the machine in reverse for more than a few seconds at a time.
Safety Slip Clutch
Reduces chance of cable tangling or injury to the operator. Allows V-belt to slip through pulley until torque is reduced.
Flexicore® Cable
Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.
Flexicore® Patent Nos.
2,244,735 and 2,849,870
OPTIONS
Snake-Oil Classic™
A great way to extend the life of drain cleaning tools & equipment
Snake-Oil Classic™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.
Quick-Fix™
General Pipe Cleaners’ Quick-Fix™ let’s you quickly repair broken drain snakes in the field. The unique Quick-Fix let’s you continue working and finish the job without having to go back to your shop to repair or replace a broken cable. The Quick-Fix is available in 1/2”, 9/16”, 5/8”, and 3/4” sizes with female or male connectors.
The specially designed spring with a pre-welded female connecter is easy to attach in the field. Prepare your broken snake by cutting off the damaged or kinked end of the cable with bolt cutters or a hack saw. Then simply thread the Quick-Fix over the broken snake. No welder is required! All you need are vice-grips or a pair of pliers. Once it’s on, the Quick-Fix holds on so tightly that it simply cannot be removed, even if you wanted to.
ClogChopper®
Rip through tough stoppages with the unique ClogChopper® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.
The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.
CUTTER SET
EASY ROOTER - COMPLETE AND READY TO OPERATE
Item # | Catalog # | Description | Weight | |
---|---|---|---|---|
110240 | ER-D |
Easy Rooter with 100EM5 (100′ x 3/4″) Flexicore Cable and SRCS-R Cutter Set. |
199 lbs |
|
110250 | ER-E |
|
177 lbs |
CUTTER SET
Item # | Catalog # | Description | Weight | |
---|---|---|---|---|
130080 | SRCS-R |
Easy Rooter Cutter Set (Includes Spear Head, 2″ U-Cutter, 3″ Heavy-Duty Side Cutter, 3″ Heavy-Duty Saw Blade, Large Retrieving Tool) |
2 lbs |
|
REPLACEMENT CABLES
Item # | Catalog # | Description | Weight | |
---|---|---|---|---|
122010 | 25EM4 |
Flexicore Cable, 5/8″ x 25 ft. with Male & Female Connectors |
20 lbs | |
122020 | 50EM4 |
Flexicore Cable, 5/8″ x 50 ft. with Male & Female Connectors |
41 lbs | |
122030 | 75EM4 |
Flexicore Cable, 5/8″ x 75 ft. with Male & Female Connectors |
61 lbs | |
122040 | 100EM4 |
Flexicore Cable, 5/8″ x 100 ft. with Male & Female Connectors |
80 lbs | |
122050 | 25EM5 |
Flexicore Cable, 3/4″ x 25 ft. with Male & Female Connectors |
25 lbs | |
122060 | 50EM5 |
Flexicore Cable, 3/4″ x 50 ft. with Male & Female Connectors |
51 lbs |
|
122070 | 75EM5 |
Flexicore Cable, 3/4″ x 75 ft. with Male & Female Connectors |
74 lbs |
|
122080 | 100EM5 |
Flexicore Cable, 3/4″ x 100 ft. with Male & Female Connectors |
101 lbs |
|
PARTS & ACCESSORIES
Item # | Catalog # | Description | Weight | |
---|---|---|---|---|
166125 | ER-303-1 |
Quick Grip Chuck for Easy Rooter |
2 lbs |
|
136000 | GFI-20 |
Ground Fault Circuit Interrupter with 20 ft. cord |
2 lbs |
|
130410 | LG |
Leather Gloves |
1 lb |
|
136070 | ER-207-B |
Foot Pedal with Hose |
– |
|
136080 | ER-207-E |
Power Switch Diaphragm |
– |
|
136210 | ER-207-G-R |
Reverse Switch |
– |
|
136180 | ER-204-1 |
Slip Clutch |
1 lb |
|
128820 | 2CG |
2” ClogChopper |
1 lb |
|
128830 | 2-1/2CG |
2-1/2” ClogChopper |
1 lb |
|
128880 | 3CG |
3” ClogChopper |
2 lbs |
|
128890 | 4CG |
4” ClogChopper |
3 lbs |
|
130860 | 5/8QF |
5/8” Quick-Fix |
1 lb |
|
130870 | 3/4QF |
3/4” Quick-Fix |
1 lb |
|
440120 | SOQ |
1 Quart Snake-Oil Classic |
2 lbs |
|
440150 | SOG |
1 Gallon Snake-Oil Classic |
7.5 lbs |
|
SPECIFICATIONS
Weight: 80 lbs. without cable.(36 kg)
Large Cage: 100 ft. of 3/4″ capacity with heavy duty roller bearings
Motor: 1/3 hp heavy duty, capacitor start, thermal overload protection, Forward/Off/Momentary Contact Reverse Switch.
Safety Slip Clutch: Protects cable and operator.
Foot Pedal: Leaves operator‘s hands free to control cable. Uses air pressure, so there’s no electrical contact between pedal and motor.
Power Cord: 20 ft. 3-wire vinyl covered with molded plug. Equipped with ground fault circuit interrupter.
Wheels: 10″ Semi-pneumatic tires, with roller bearings.
Cables: 3/4″ for 4-10″ lines; 5/8″ for 3-6″ lines.

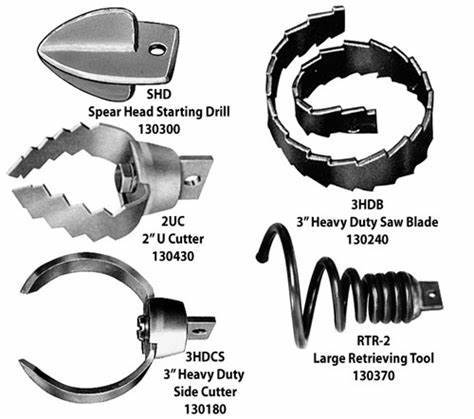

Cutter Set: Spear Head, 2″ U-Cutter, 3″ Heavy-Duty Side Cutter, 3″ Heavy-Duty Saw Blade and Large Retriever.
Leather Gloves: With double-reinforced palm, for hand protection when guiding cable.
