Drain inspection system for 3"-10" lines,Gen-Eye USB flash drive,Wi-Fi
Product Code:- please contact us for pricing

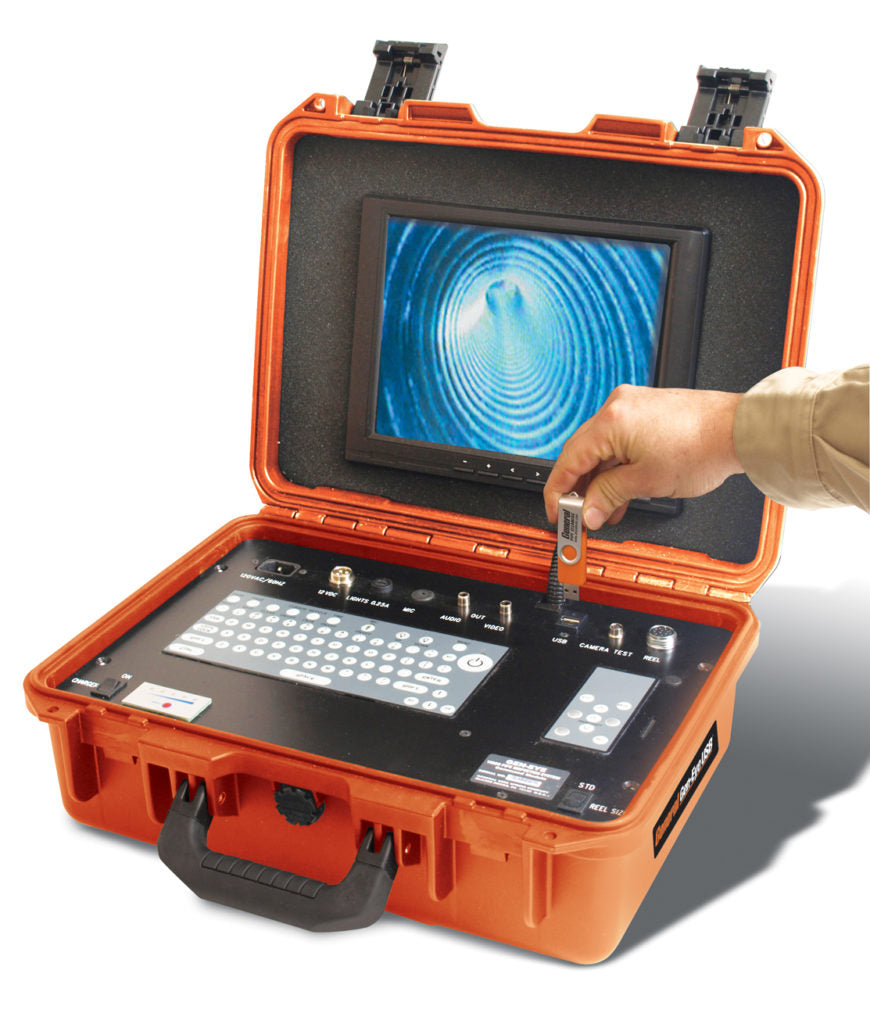

The Gen-Eye USB® Series includes a USB port to record on a flash drive. The Gen-Eye USB packs into a compact package, including up to 128 GB of USB recording capability, a 10.4” LCD color screen and a waterproof keyboard protected by a heavy-duty Pelican case.
Interested in adding Wi-Fi to your inspection system? You can with the Gen-Eye USB-W®. It includes all the features of the Gen-Eye USB®, plus a Wi-Fi transmitter inside so you can send video or photos to your smartphone or tablet.
Or upgrade to the Gen-Eye USB-P® Premium inspection system that includes all of the features of the Gen-Eye USB®, plus a sunlight readable screen, a rechargeable battery that lasts up to 4 hours, as well as the Wi-Fi transmitter.
All units include on-screen distance counter, voice-over recording, camera test port, and date and time stamp.
FEATURES
USB Monitor:
- 10.4” LCD color screen for crisp clear pictures
- USB recording drive – Can handle up to 128 GB flash drive
- Waterproof keyboard permits on-screen titling
- Internal microphone and speaker for voice over recording
- On-screen date and time indicators
- On-screen distance counter
- LED Dimmer control
- Heavy-duty Pelican case
- Camera test port
- Includes AC and DC power cords, and 8 GB flash drive
USB-W Monitor: Same as USB monitor, plus:
- Wi-Fi transmitter to record video on smartphone or tablet
Gel-Rod® Push Rods
Patented Gel-Rod push rod withstands tough abuse in the line. The Gel in the cable keeps the moisture away from the wires if it’s ever cut or abraded. Further, the dual layer/dual color construction let’s you see cable wear so it can be repaired before it becomes a problem. The Kevlar® braid, fiberglass core, and durable sheath provide for maximum pushing and pulling power.
Big Capacity Reels
The full size reels feature a self-leveling color camera and 200 ft., 300 ft. or 400 ft. Gel-Rod® for inspecting 3” to 10” drain lines. Ten inch wheels ensure easy transport to and from the job. The compact Mini-Reels carry 100 ft. or 200 ft. of Gel-Rod® with mini self-leveling camera for trouble shooting 2” and 3” lines. The tough steel frame can be operated vertically or horizontally, so you can handle nearly any application.
Advanced Skid Designs
Skids keep the camera centered in the pipe for a better view, while reducing drag on longer runs. Standard systems include both 2″, 3″and 6″ trap skids that protect the camera from abrasion as it slides through cast iron traps. Optional 3-in-1 skid set for 4″, 6″ and 8″ lines, and Universal Roller Skid for 6″ to 12″ lines are also available.
-
Large 10.4″ Screen
Large 10.4” LCD color monitor gives you crisp, clear images to make it easier to see the picture while doing inspections. -
Waterproof Keyboard
You get up to nine pages of text to add your company name and job location to each video you make. -
On-screen distance counter
Lets you keep track of how much push-rod you’ve fed into the line. Switchable between standard and mini reels. -
Date and Time Stamp
You can document the date and time of each job for your records. -
USB Port
Record video or still images on flash drive. Can handle up to 128 GB flash drive. Port is easy to use for quick video and image capture located above the keyboard on the control panel and below the monitor.
-
Built-in voice over recording
Internal microphone and on/off switch lets you add commentary to your videos. -
Built-in AC/DC converter
Allows you to operate in the field with truck power alone. -
Heavy-Duty Pelican Case
Protects LCD screen, electronics, and your investment. -
Self-Leveling Camera
Automatically keeps picture right side up as the camera glides through the line. Just 1.375” in diameter with 16 Bright-White LED’s to illuminate up to 10” lines. -
Mini Self-Leveling Camera
Mini Self-Leveling camera is just 1.125” in diameter with 4 Super Bright LEDs to light up 2” to 4” lines with 15% more candle power than other models.
GEN-EYE USB-W PACKAGES
400ft standard reel models are also available.
Item # | Catalog # | Description | LB |
117160 | SL-USBW-A | Includes USBW-500 Command Module with Wi-Fi, SL-GL-200 reel with Self-Leveling Color Camera, Docking Arm and 2, 3, & 6″ skids. | 79 |
117170 | SL-USBW-B | Same as SL-USBW-A, plus GL-100 Hot-Spot Locator | 84 |
183060 | SL-USBW-C | Includes USBW-500 Command Module with Wi-Fi, SL-GL-300 reel with Self-Leveling Color Camera, Docking Arm and 2, 3, & 6″ skids. | 108 |
183070 | SL-USBW-D | Same as SL-USBW-C, plus GL-100 Hot-Spot Locator | 124 |
117530 | SL-M-USBW-A | Includes USBW-500 Command Module with Wi-Fi, SL-M-GL-100 mini reel with Mini Self-Leveling Color Camera, Docking Arm and 2 & 3″ skids. | 93 |
117540 | SL-M-USBW-B | Same as SL-M-USBW-A, plus GL-100 Hot-Spot Locator | 98 |
117550 | SL-M-USBW-C | Includes USBW-500 Command Module, SL-M-GL-200 mini reel with Mini Self-Leveling Color Camera, Docking Arm and 2 & 3″ skids. | 102 |
117560 | SL-M-USBW-D | Same as SL-M-USBW-C, plus GL-100 Hot-Spot Locator | 107 |
SPECIFICATIONS
Line Capacity:
Self-Leveling Color Camera – 3” to 10”
Mini Self-Leveling Color Camera – 2” to 3”
Reel Capacity:
Self-Leveling Color Camera – 200, 300, 400 ft.
Mini Self-Leveling Color Camera – 100 or 200 ft.
Sensitivity:
Self-Leveling Color Camera – 0.5 Lux
Mini Self-Leveling Color Camera – 0.008 Lux
Lighting:
Self-Leveling Color Camera – 16 White LED’s 88K MCD
Mini Self-Leveling Color Camera – 4 Super Bright White LED’s 78K MCD
White Balance: Auto High Speed
Camera Dimensions:
Self-Leveling Color Camera – 1.625” Dia. X 2.7” Long
Mini Self-Leveling Color Camera – 1.125” Dia. X 1.74” Long
Push-Rod Diameter:
Self-Leveling Color Camera – .475” Gel-Rod®
Mini Self-Leveling Color Camera – .400” Gel-Rod®
Reel Dimensions:
Self-Leveling Color Camera – 29” L x 16” W x 33-1/2” H
Mini Self-Leveling Color Camera – 18” L x 16” W x 19” H
Gen-Eye USB Case Dimensions:
10-1/2” L x 14” W x 6” H (Closed)
12-1/2” H (Open)
LCD Screen Size: 10.4″
Video Format: NTSC or PAL
Power: 110v/60 Hz AC, 12 VDC
Operating Temperature: 14° F to 122° F -10° C to 50° C
