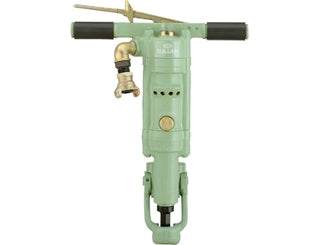

Rock drill 30 LB class T handle 7/8 in. hex x 4 1/4 in. shankProduct Code:
Single-throttle lever controls all tool functions: automatic-off, blow only, and progressive drill speeds.
We eliminated many high wear parts. To you this means less loss of power due to wear, less downtime to replace worn parts, and lower overall maintenance costs.
With only two parts moving during operation, a non-corrosive automatic valve, less radial piston movement and high-tech alloys, our drills do not require special rock drill oil. Under normal operating conditions, oil carry-over from the compressor combined with moisture in the air will provide sufficient lubrication.
Dead Man Safety Handle
One Control for Drilling and Blowing
Variable Throttle Control
Continuous Hole Cleaning
Direct Rotation of the Piston
Minimal Lubrication Required
One-Year Parts Warranty
Weight 34 lbs.
Bore & Stroke 2 9/32" x 1 3/4"
Impact Rate 2300 blows/min.
Air Consumption 53 cfm (1.5 m3/min, 25 l/s)
Air Inlet Diameter 3/4" NPT
Shipping Weight 38 lbs.
Chuck Size 7/8" HX x 3 1/4", 7/8" HX x 4 1/4"
Specifications subject to change without notice.
