Power distribution box 50 amp 125/250V, 4 x 125V 20A

Product Code:
  • $700.00

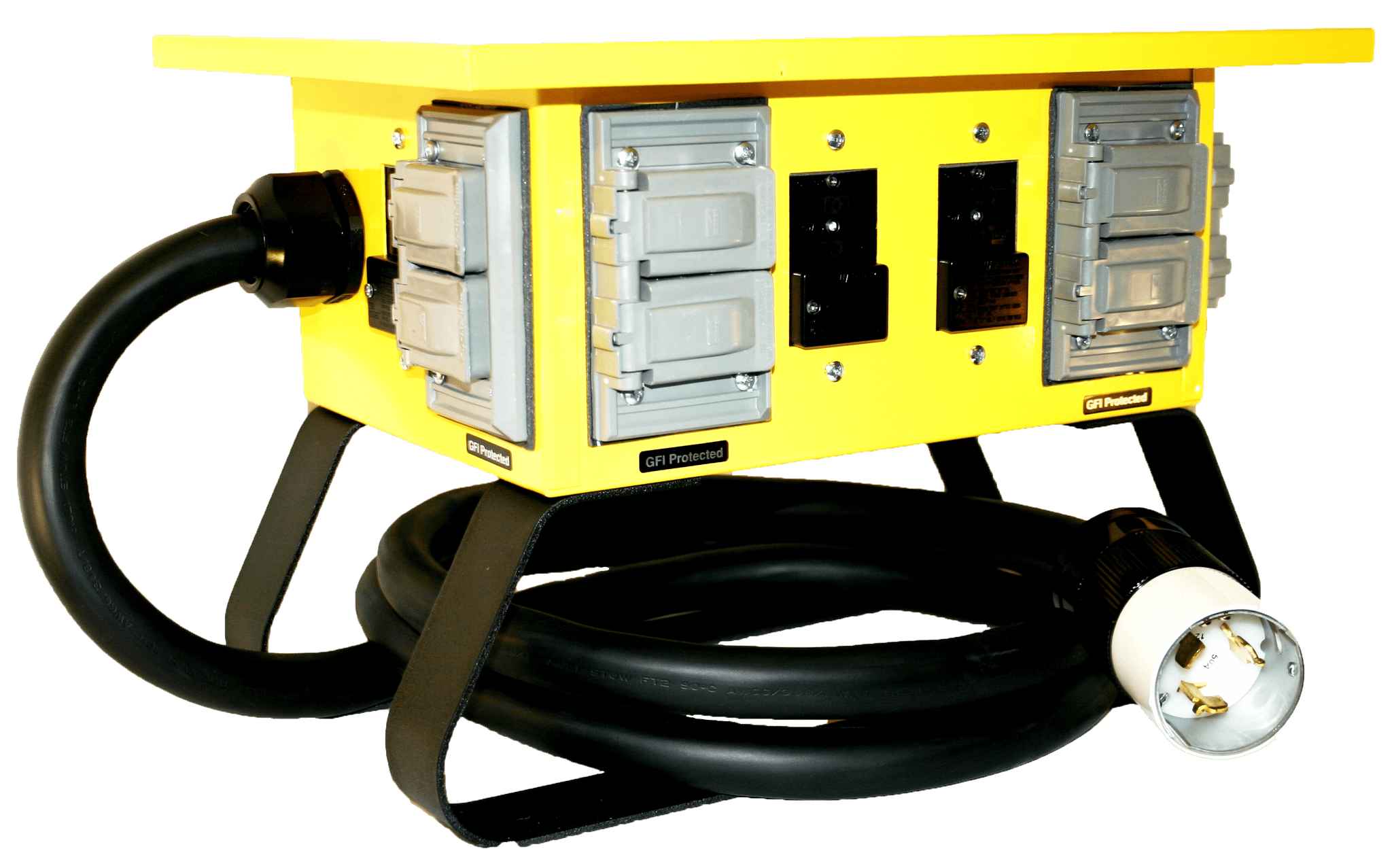

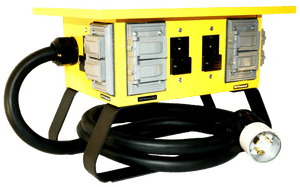

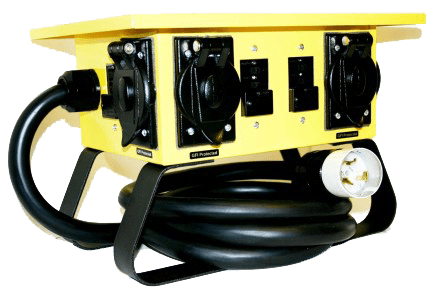

The Mini Single Phase (Spider) Power Box features four 20-amp circuits, which provides up to 80 amps of 120-volt power!

GFCI protected CSA c/w 6 foot 6/3-8/1 STOW cord w/CS6365M male plug

Made in USA

Features contractors love:
UL1604 construction site approved
Includes four 20-amp breakers
Heavy-duty impact/flame-resistant and weatherproof covers
Approved for use in wet locations
Bright yellow colour
GFCI protected
Open neutral protection
Reverse phasing protector light

Input Rating: UL Listed  50 Amp 125/250V CS6365M
Output Receptacles: 4 x 20 Amp 125V 5-20R Straight Duplex or 4 x 20 AMP 125V L5-20R twist lock
Total Amperage: 80 Amp @ 120V
Rating: NEMA 3R Raintight Enclosure

GFCI specs: 4-6 milliamp trip level, <25 milliseconds trip time

Dimensions: 21" × 14.5" × 11" LxWxH

Part # 6508UGSX is formerly CEP part # 6508GU.

Part # 6508TLSX is formerly CEP part # 6508G.

Weight: 32.0 lb
