Power distribution box 20A 125/250V

Product Code:
  • $498.77

These Portable Power Distribution Mini-Centers have been engineered utilizing the latest in GFCI technology, providing the user with the highest level of electrical safety. These compact power boxes are designed to plug into the 4–wire full power outlet on small generators. By utilizing this outlet, the user maximizes the output of his unit while also provided with 2 separate 20 amp 125V GFCI protected circuits. Each circuit has its own breaker and GFCI device offering for outlets per circuit. These units are available with either 20 amp 125/250V or 30 amp 125/250V input plugs. Check your generator for the proper device.

These GFCI modules give the user not only ground fault protection, but also open neutral and reverse phasing protection. They are listed to U.L. 1640 Standards for Portable Power Distribution and designed to stand up to the toughest of jobsite conditions. Each unit has been carefully assembled to provide the ultimate in electrical safety as well as meeting current OSHA standards.  Now helps you comply with the New NEC 2017 Rule for Portable Generators up to 15kw, which requires GFCI protection on the 125/250V outlet.

AMPS 20 Amps
Volts 125/250V
Power Inlet 20A 125V L14-20P Male Plug

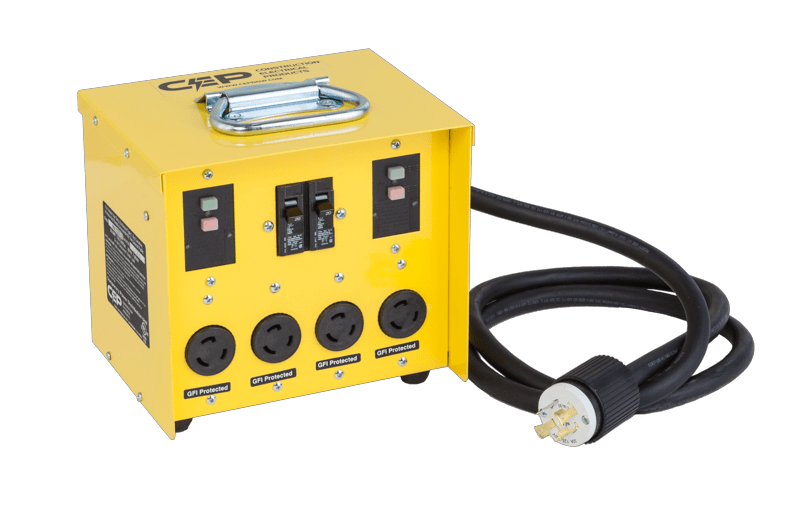

Receptacles 4 x 5-20R Duplex, or 4 x L5-20R twist lock
Outlet Description 20A Mini U-Ground
Outlet Type U-Ground
Feed-Through No
3R Rated No
Construction Powder Coated Steel
Dimensions (In.) 10.25" x 10" x 8.5" HxWxD


Power inlet is a 20 amp L14-20R twist lock.

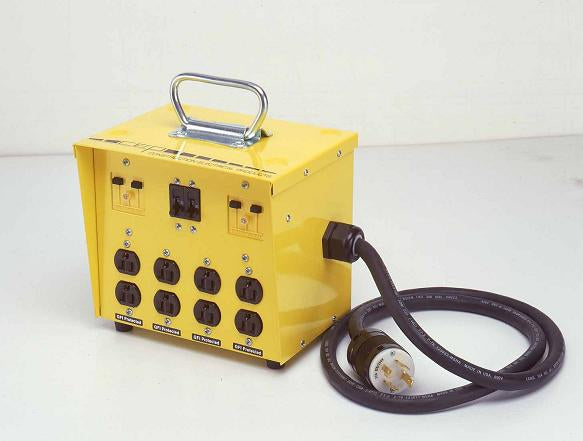

Has eight outlets 20 amp 5-20R straight GFCI & overload protected.

6522UGMX is formerly CEP part # 6502GU

6522TLMX is formrly CEP part # 6502GTL

Weight: 15.0 lb
