Mortar Mixer 10 cu ft steel drum

Product Code:
  • $7,260.00

Crown has earned a reputation for building the most dependable and safest mortar mixers on the market today. Designed to increase your productivity and reduce routine maintenance, Crow mixers have all the features you demand and the quality you expect. We back it up with a comprehensive warranty and unparalleled service at a price that makes Crown come out on top every time.

If you’re new to Crown mixers, give one a try. We’re sure you’ll appreciate the difference

  1. All crown mixers feature a lifetime warranty on drum bearings and seals.
  2. Crown positions the dump and clutch levers at the front of the mixer for safe and efficient use.
  3. Crown’s self-latching drum lock is knee operated, freeing both hands for optimal dumping control.
  4. Safety chains come standard on all highway towable Mortar Mixers but optional on 4S and 6S Models.
  5. Crown’s rugged tow pole is retractable or removable and easily stows away when not in use for safer operation.+
  6. Standard raised frame construction allows for convenient dumping to a    wheel-barrow.* Crown’s newly  redesigned frame means improved durability and stronger support where you need it.
  7. All towable models come standard with high speed taper roller bearings and heavy duty axles for years of trouble free towing. Crown’s innovative optional rubber torsion suspension system provides the industry’s smoothest towing and handling.++

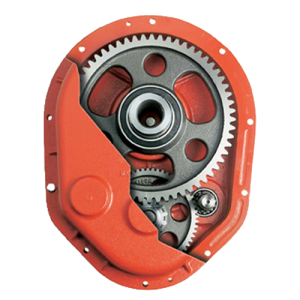

  8. Crown’s exclusive Shear Pin Protection System shields the gear reducer and engine from potential  damage should an engaged mixer be impeded by a shovel or other foreign object. Sturdy vented engine housing comes standard with a swing-away hood, providing easy engine access.Crown’s fixed engine mount design eliminates engine movement and bounce during transit, resulting in less wear and longer engine life.
  9. Crown utilizes heavy duty, 7 gauge steel for longer drum life.
  10. Crown uses the heaviest solid steel paddle shaft in the industry. Crown’s ductile iron paddles are stronger than welded steel making them the industry’s most durable. Every detail counts, like our two-piece safety grill which is stronger, safer, easier to use than a one-piece grill, and will not damage the drum.

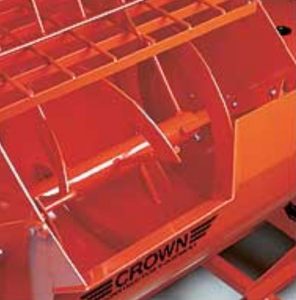

Optional Dual Spiral blades

Crown’s inner and outer spiral blades work like two augers to provide mixing on both the inside and outside radius, moving more material than traditional systems and providing increased air entrapment.

Discover the Optional Spiral Difference!

Crown’s spiral mixing system works like a spiral conveyor rapidly moving material across the drum providing a faster, more thorough mixture.

  • 30% faster mix
  • Less splash – reduces cleanup and increases capacity
  • No contact with the drum – reduces drum wear
  • No rubber blades – reduces maintenance
  • Perfect fort color additives and dry mixes

Bag Capacity: 3 - 3.5

 Cubic Feet: 10

 Overall Height 57.75"

 Overall Width 45"

 Charging Height 60"

 Overall Length 73" (Tow Pole In)

                      92.75" (Tow Pole Out)

 Tires (Pneumatic) 5.3 x 12

 Spiral Blades:  Optional

 Highway Towable: Yes

All models with a larger than 1.5 electric motor do not include any electrical wiring from the motor, do not include a male electrical plug, and do not include an on/off switch. These items are the responsibility of the purchaser to have installed by a professional electrician as per local code.

Download a parts diagram here.

Weight: 710.0 lb
