Grout pump manual 100 PSI

Grout pump manual 100 PSI

Product Code:
  • $3,375.00

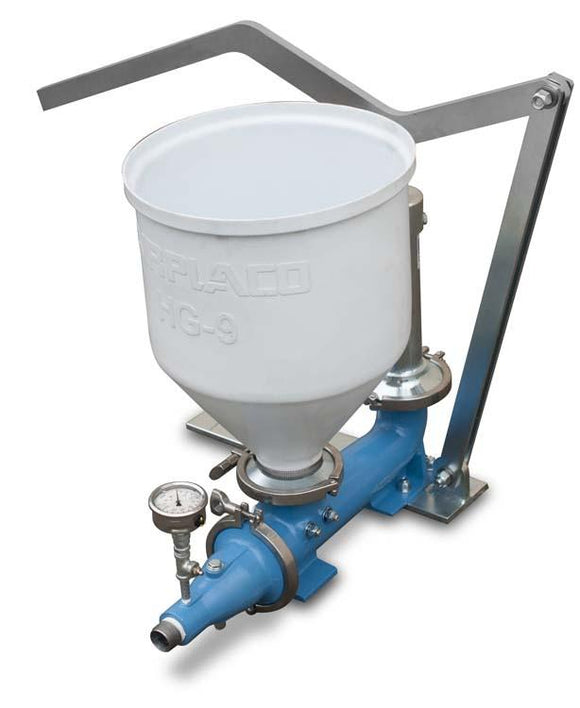

The Airplaco Handy-Grout HG-9 is a hand-operated, portable grout pump for smaller grouting jobs, such as door frames, encasements, waterproofing, void fill and other grouting applications. The HG-9 is designed for durability while still offering a lightweight grouting solution. The HG-9 features cast assembly, ball-check manifold, polyurethane hopper and pressure gauge.

The HG-9 portable grout pump design maximizes two important features, durability and weight. The HG-9 grout pump’s cast assembly ensures a durable design free from excessive welding and the polyurethane hopper ensures lightweight and easy cleaning. An in-line pressure gauge allows the operator to monitor the efficiency in relation to the thickness of the slurry used for the application. If you need more power but still need portability check out the air-powered Airplaco Handy-Grout

The Handy-Grout HG-9 portable grout pump comes with a 1″ x 10′ hose assembly, visit the store for an assortment of parts, accessories and finishing tools needed to customize the HG-9 for any job.

  • Lightweight
  • Polyurethane Hopper
  • Durable Design
  • Hose Assembly
  • Self-priming Manifold
  • CHOCKFAST Red HF Epoxy Grout can be pumped with the HG-9
Max Output
15 cu ft/hr (424 L)
Line Pressure
0 to 100 psi
Material Hopper
5 gallon (19 L)
Outlet Size
1 in.
Max Vertical
20 ft (6 m)
Max Horizontal
50 ft (15 m)
Power Source
16 x 24 x 26 in. (W x L x H)
53 lb (24 kg)

Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.

Complete with 5 gallon hopper, 10 ft hose and straight pipe
